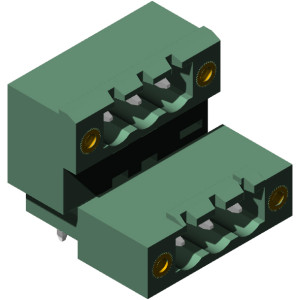

CMD-3.5-HF

CMD-3.5-HF

Plug-in connector
DOUBLE MALE CONN. W. FLANGE STACKED PITCH 3.5

Features

  • Pitch: 3,5 mm
  • Connection system: pcb
  • Plastic body: PA66, UL 94V0
  • Temperature: -40°C + 105°C
  • Rated voltage: 250V
  • Rated current: 7A
  • Wire section: 1,5 mm2 28÷16 AWG
  • Approvals Cruus 8A-300V
Product code Poles
CMD02-3.5-HF 2 Poles Contact us
CMD03-3.5-HF 3 Poles Contact us
CMD04-3.5-HF 4 Poles Contact us
CMD05-3.5-HF 5 Poles Contact us
CMD06-3.5-HF 6 Poles Contact us
CMD07-3.5-HF 7 Poles Contact us
CMD08-3.5-HF 8 Poles Contact us
CMD09-3.5-HF 9 Poles Contact us
CMD10-3.5-HF 10 Poles Contact us
CMD11-3.5-HF 11 Poles Contact us
CMD12-3.5-HF 12 Poles Contact us
CMD13-3.5-HF 13 Poles Contact us
CMD14-3.5-HF 14 Poles Contact us
CMD15-3.5-HF 15 Poles Contact us
CMD16-3.5-HF 16 Poles Contact us
CMD17-3.5-HF 17 Poles Contact us
CMD18-3.5-HF 18 Poles Contact us
CMD19-3.5-HF 19 Poles Contact us
CMD20-3.5-HF 20 Poles Contact us
CMD21-3.5-HF 21 Poles Contact us
CMD22-3.5-HF 22 Poles Contact us
