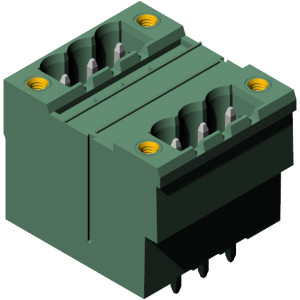

Features
- Pitch: 5,08 mm
- Connection system: pcb
- Plastic body: PA66, UL 94V0
- Temperature: -40°C + 105°C
- Rated voltage: 450V
- Rated current: 20A
- Wire section: 2,5 mm2 22÷12 AWG
-
Approvals
15A-300V
| Product code | Poles | |
|---|---|---|
| MDL02-5.08-VF | 2 Poles | Datasheet Contact us |
| MDL03-5.08-VF | 3 Poles | Datasheet Contact us |
| MDL04-5.08-VF | 4 Poles | Datasheet Contact us |
| MDL05-5.08-VF | 5 Poles | Datasheet Contact us |
| MDL06-5.08-VF | 6 Poles | Datasheet Contact us |
| MDL07-5.08-VF | 7 Poles | Datasheet Contact us |
| MDL08-5.08-VF | 8 Poles | Datasheet Contact us |
| MDL09-5.08-VF | 9 Poles | Datasheet Contact us |
| MDL10-5.08-VF | 10 Poles | Datasheet Contact us |
| MDL11-5.08-VF | 11 Poles | Datasheet Contact us |
| MDL12-5.08-VF | 12 Poles | Datasheet Contact us |
| MDL13-5.08-VF | 13 Poles | Datasheet Contact us |
| MDL14-5.08-VF | 14 Poles | Datasheet Contact us |
| MDL15-5.08-VF | 15 Poles | Datasheet Contact us |
| MDL16-5.08-VF | 16 Poles | Datasheet Contact us |
| MDL17-5.08-VF | 17 Poles | Datasheet Contact us |
| MDL18-5.08-VF | 18 Poles | Datasheet Contact us |
| MDL19-5.08-VF | 19 Poles | Datasheet Contact us |
| MDL20-5.08-VF | 20 Poles | Datasheet Contact us |
| MDL21-5.08-VF | 21 Poles | Datasheet Contact us |
| MDL22-5.08-VF | 22 Poles | Datasheet Contact us |
